Pet Food Vertical Packaging Machine

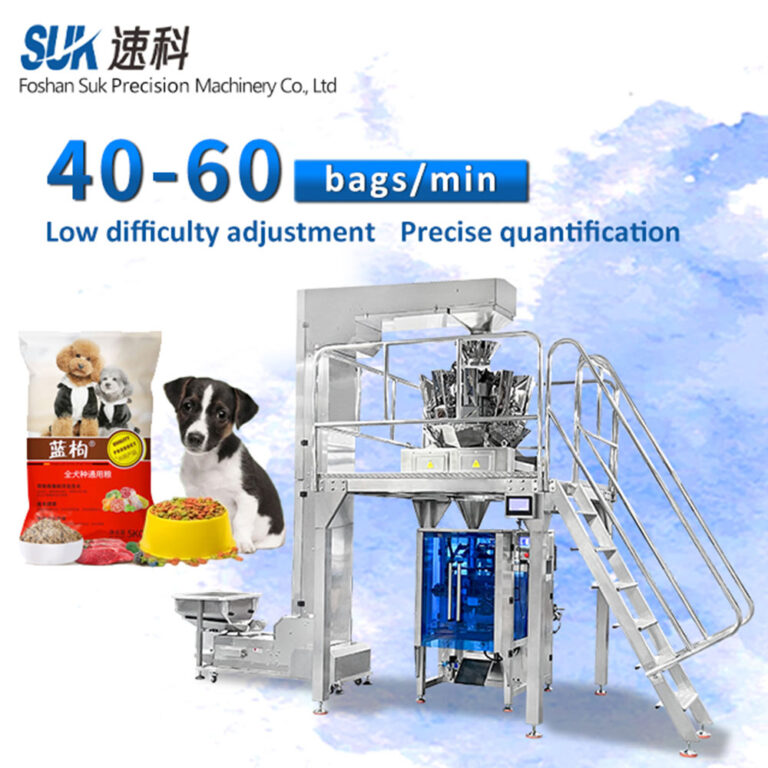

The SUK Pet Food Vertical Packaging Machine is a heavy-duty VFFS system designed for dedicated production lines. It offers peak stability and speed for specific weight requirements (up to 8kg), making it the ideal choice for high-volume pet food manufacturers.

Share

Description

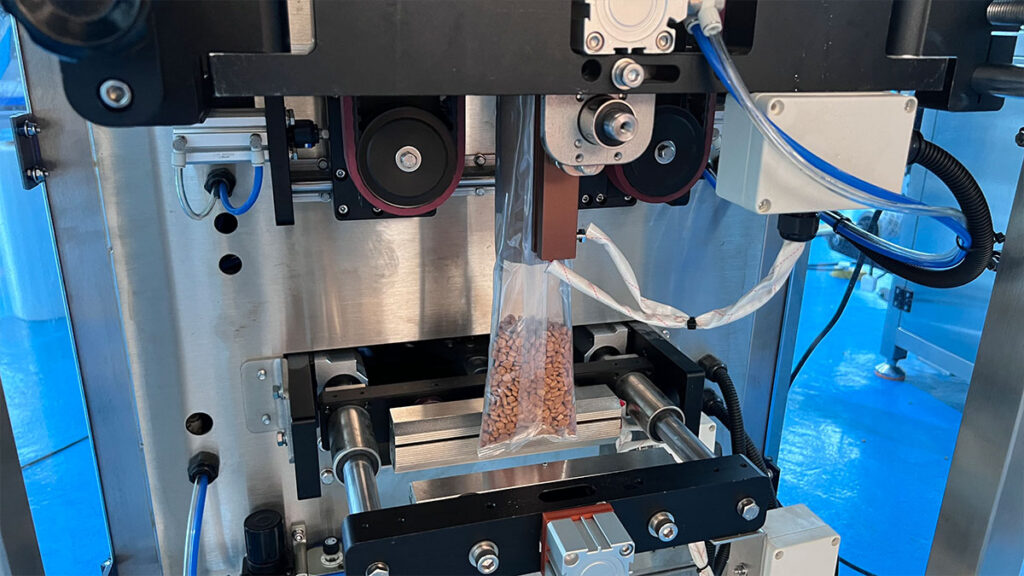

In the pet food industry, production speed and seal integrity are non-negotiable. The SUK Pet Food Vertical Packaging Machine (VFFS) is specifically engineered for manufacturers who demand dedicated, high-efficiency lines. Unlike multi-purpose machines that sacrifice speed for flexibility, our system is optimized for your primary weight specification—whether it's 500g or 8kg. This focus ensures a consistent throughput of up to 40-60 bags per minute with minimal maintenance.

Why Choose Dedicated VFFS for Pet Food?

  • Peak Production Speed: Fine-tuned for specific weights to achieve maximum cycles per minute.
  • Heavy-Duty 8kg Capacity: Reinforced pulling system to handle large retail bags without film slippage.
  • Hermetic Seal Integrity: Optimized for multi-layer composite films (OPP/PE, PET/PE) to lock in aroma and prevent kibble oils from leaking.
  • SUS304 Hygiene: Full stainless steel construction complies with global pet food safety standards.
  • Low Downtime: Simple, robust design focused on continuous, single-spec operation.

Application range

Dog food
Cat food
Pet treats
Pet snacks
Freeze-dried
Pet food
Fish feed
Bird feed

Parameters

ModelSKL-420SKL-520SKL-720SKL-820
Bag length80-320mm(L)80-420mm(L)100-500mm(L)100-550mm(L)
Bag width50-200mm(w)50-250mm(w)100-350mm(w)180-400mm(W)
BMax width of roll film420mm520mm720mm820mm
Packing materialOPP / CPP/OPP/PEPET / PEOPP / CPP/OPP/PEPET / PEOPP / CPP/OPP/PEPET / PEOPP / CPP/OPP/PEPET / PE
Packing speed5-60bags/min5-50bags/min5-40bags/min5-30bags/min
Measuring range150-1500g150-2000g500-3500g6000g(Max)
Power220V 50/60hz 2.2kw220V 50/60hz2.5kw220V50/60hz3kw220V 50/60hz 5kw
Machine weight500kg550kg600kg900kg
Machine size(mm)(L)1388 x(W)1116x(H)1536mm(L)1440x(W)1216x(H)1796mm(L)1500x(W)1116x(H)1536mm(L)1780x(W)1350x(H)1950mm

Video

Helpful Resources

Is a dedicated production line right for you? Read our industry analysis: [Why Dedicated Packaging Lines are the Key to Pet Food Scalability].
