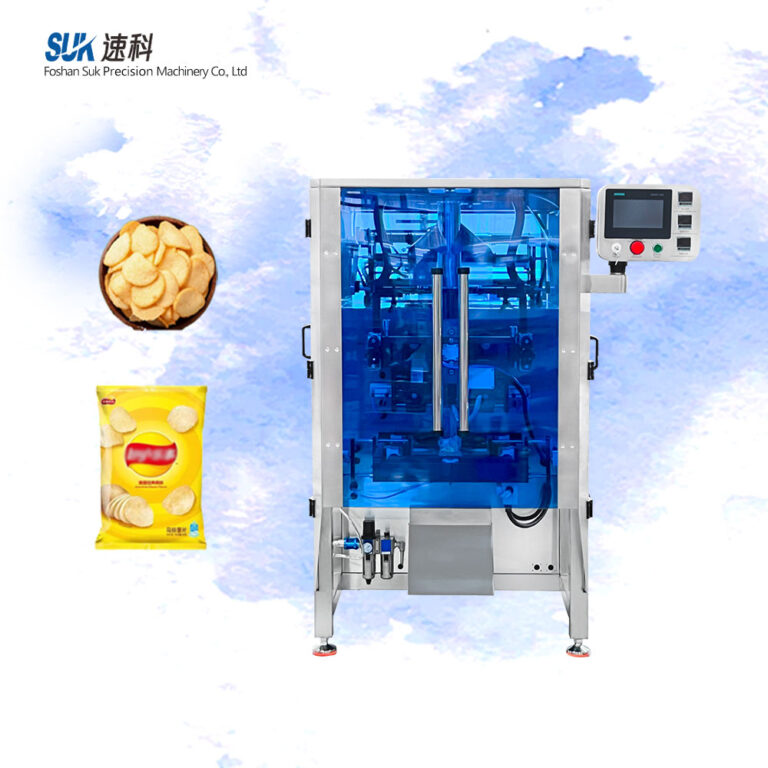

Vertical Form Fill Seal (VFFS) Packaging Machine

Description

Features

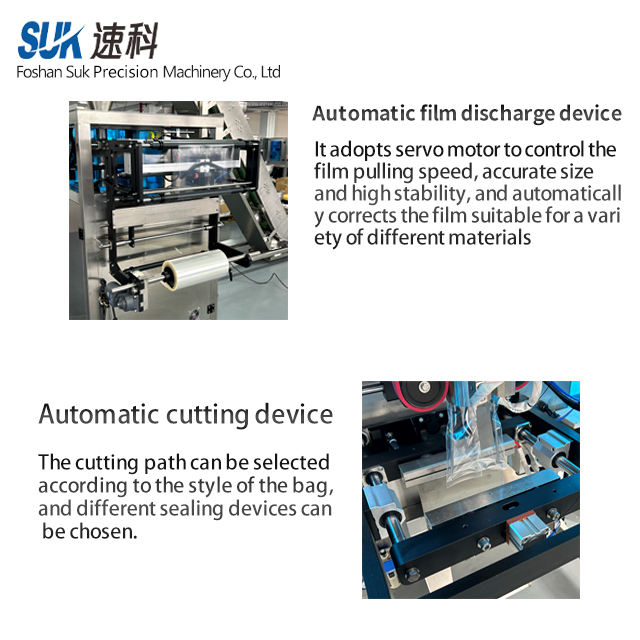

• Roll-film bag making: match the forming tube, longitudinal seal, transverse jaws and cutting arrangement to the intended finished bag.
• Product-specific dosing: evaluate weighing, auger or liquid metering with the actual food rather than assuming interchangeable filling systems.
• Production review: agree on accepted finished bags per minute for the chosen fill, film and bag geometry. Maximum values in a reference table are not simultaneous guarantees.
• Changeover planning: define film changes, format parts, cleaning access and the expected SKU schedule.
• Factory integration: specify coding, inspection, rejection and conveyor interfaces, plus utilities, operator training and acceptance scope in the quotation.

Application range

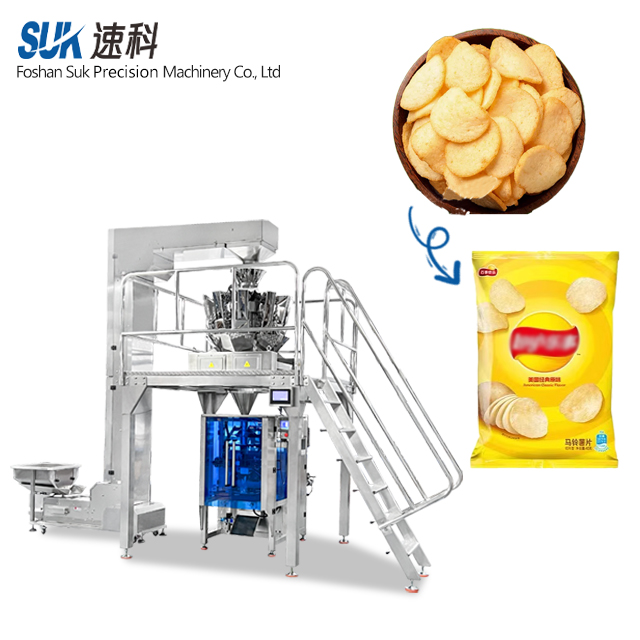

• Snacks, nuts, grains or rice with an appropriate feeding and weighing arrangement.
• Coffee, milk powder or seasoning powders with product-specific powder dosing and dust/seal-area assessment.
• Liquid foods or pastes with compatible metering and sealing conditions.
• Other food or non-food materials require a separate suitability review. One machine, one set of contact parts or one dosing system is not assumed to cover every listed product.

Food VFFS Project Routes

Use the product and finished bag to narrow the configuration: food powder dosing, snack weighing and bagging, rice packaging, or ice cube bagging.

Compare the VFFS selection guide before fixing the bag-maker, film and dosing arrangement. For small packs that must be boxed, review the powder VFFS-to-carton route separately. Provide your product sample, bag drawing, film and accepted bags per minute for a matched factory-line proposal.

Parameters

The table retains earlier website configuration references. Catalog records can describe different SKL configurations and dimension definitions. Confirm the current model, finished bag dimensions, film width, dosing range, utilities and installation drawing for the quoted setup; a volume range is not a verified gram range.

Model	SKL-420	SKL-520	SKL-720	SKL-820
Bag length	80-320mm(L)	80-420mm(L)	100-500mm(L)	100-550mm(L)
Bag width	50-200mm(w)	50-250mm(w)	100-350mm(w)	180-400mm(W)
BMax width of roll film	420mm	520mm	720mm	820mm
Packing material	OPP / CPP/OPP/PEPET / PE	OPP / CPP/OPP/PEPET / PE	OPP / CPP/OPP/PEPET / PE	OPP / CPP/OPP/PEPET / PE
Packing speed	5-60bags/min	5-50bags/min	5-40bags/min	5-30bags/min
Measuring range	150-1500ml	150-2000ml	500-3500ml	6000ml(Max
Power	220V 50/60hz 2.2kw	220V 50/60hz2.5kw	220V50/60hz3kw	220V 50/60hz 5kw
Machine weight	500kg	550kg	600kg	900kg
Machine size(mm)	(L)1388 x(W)1116x(H)1536mm	(L)1440x(W)1216x(H)1796mm	(L)1500x(W)1116x(H)1536mm	(L)1780x(W)1350x(H)1950mm

Video

Explore related equipment: the premade pouch packing machine for stand-up and zipper pouches, the stick packing machine for powders, or ask SUK about a packaging line solution.

Which food packaging format do you need? For ready-made zipper or stand-up pouches, compare the premade pouch packing machine. For small single-serve stick packs and sachets produced in parallel, review the multi-lane powder sachet machine. These are alternative configurations selected around the pack, not interchangeable names for the same machine.

Request a VFFS configuration: send your food product or sample, fill weight or volume, finished-bag width and length, film sample, target bags per minute, cleaning needs and installation country. Bag width is not roll-film width; please identify each separately. Maximum speed and maximum fill quantity are not simultaneous performance guarantees.

Discuss Your Food VFFS Packaging Project
