Cocoa powder is a light, dusty and slightly oily powder, and that combination is what makes it interesting to pack. It aerates when it is moved, it can bridge in a hopper, and it leaves a fine film on the surfaces around the filling and sealing area. None of that is unusual in a food factory, but it does mean the packing machine should be chosen around the powder rather than around a general-purpose specification. The seven steps below are the sequence we use when a factory asks for help reviewing a cocoa powder packing machine project.

Define the Cocoa Powder Product

Cocoa powder is not a single material. Natural cocoa powder, alkalised (Dutched) cocoa powder, and blends that include sugar, milk powder or other ingredients all flow differently through a hopper and settle differently in a bag. Two powders that look similar on a bench can behave quite differently once they are sitting in a production hopper.

Start by writing down exactly what will be packed: the ingredient list, whether the powder is a single ingredient or a blend, how fine it is, and whether it tends to cake or to hold air. If more than one recipe will run on the same machine, list all of them, because the machine has to cope with the least cooperative product rather than the easiest one.

Confirm the Fill Range

Fill range is the smallest and the largest amount that will go into a single pack, and it is the number that most often decides which machine family makes sense. Cocoa powder is sold in retail bags, food-service bags and single-serve sachets, and those are very different filling tasks.

Write the range down using the pack sizes you actually sell, then decide how tight the fill tolerance needs to be for each one. Changing only the bag size later is straightforward; changing the filling principle later is not.

Choose the Bag Format

The bag format decides how the powder is contained, how the pack looks on the shelf, and how the film runs through the machine. Cocoa powder is commonly packed in pillow bags, gusseted bags, stand-up pouches and stick sachets, and each format brings its own film structure and sealing behaviour.

Choose the format from the market first and from the machine second. If you expect to run more than one format over the life of the machine, say so at the start, because a format change can mean a different forming set, different seals and sometimes a different machine.

Compare Vertical and Stick Pack Systems

A film-based vertical machine forms the bag from a flat roll, fills it through a vertical tube and seals it in one continuous motion. It is the usual choice for retail and food-service cocoa powder bags, and the powder packing machine options on this site are built around powder feeding, filling and bag-format requirements rather than around one fixed product.

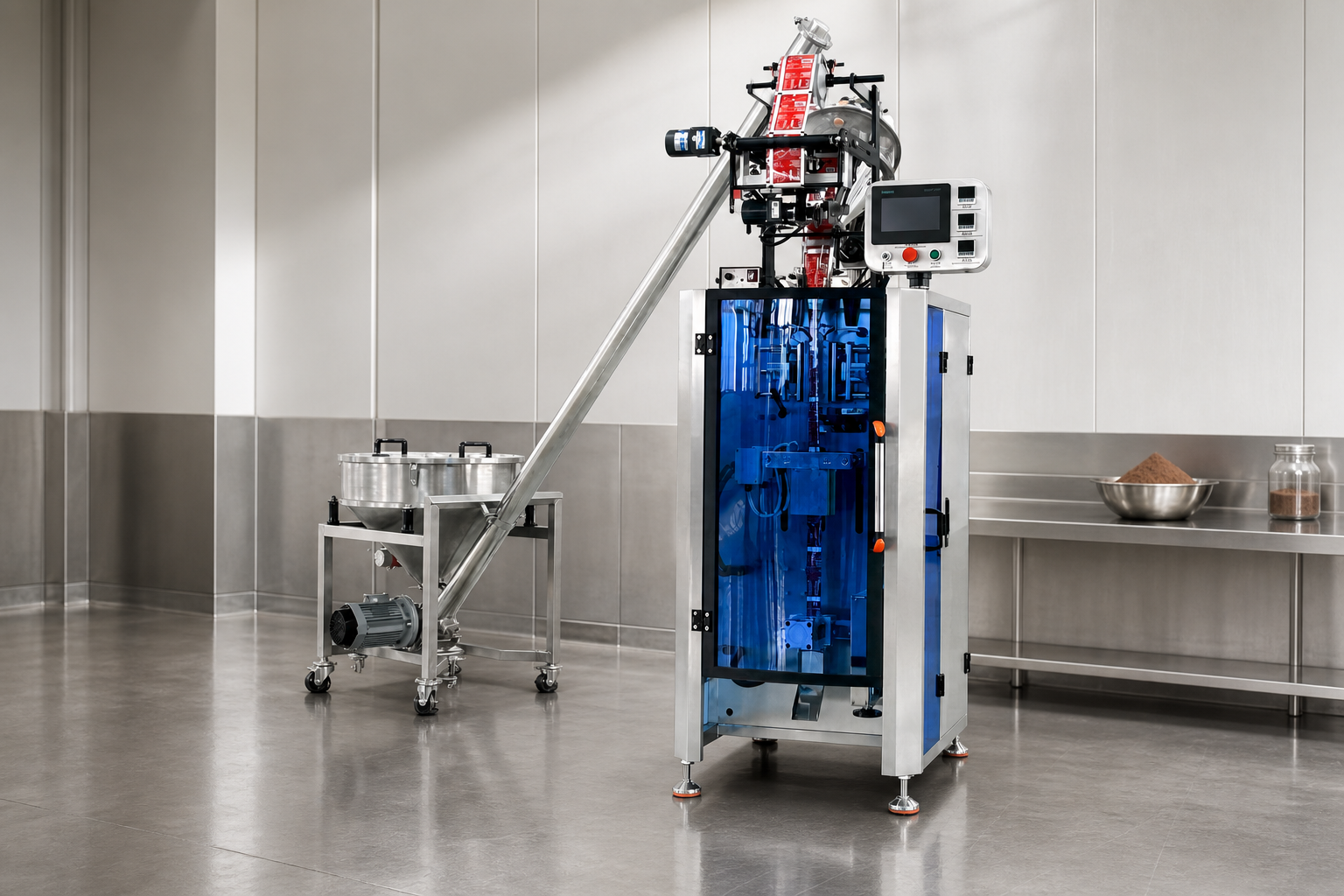

A multi-lane powder packaging machine works differently: it forms several narrow sticks in parallel from the same film roll, which suits single-serve portions and sample packs. Because each stick holds a small amount of powder, filling consistency across the lanes and clean sealing on narrow seals are the points to examine.

For most cocoa powder projects the decision comes down to pack size, pack count and how much flexibility you want to keep. A cocoa powder packaging machine configured for one format is not automatically the right answer for the other, so compare the two against your own pack list rather than against a general specification.

Review Line Connections

A packing machine is rarely the whole line. Ask how the filled pack leaves the machine and what happens next: checkweighing, metal detection, cartoning, case packing or hand packing. Each of those steps adds a transfer point, and every transfer point is somewhere powder can escape or a bag can be handled badly.

Look upstream as well. How is the cocoa powder delivered to the machine hopper, and how much manual handling is involved? A layout that keeps the powder path short and the transfer points few is usually easier to run and easier to clean.

Prepare Samples and Drawings

Descriptions are useful; samples are better. A cocoa powder sample, a finished pouch or stick, and a packaging drawing let the feeding, filling and sealing behaviour be checked against something real instead of an estimate.

Send enough powder to run a meaningful trial, include the film or pouch structure if you have it, and add a simple line drawing or photo showing where the machine will stand. If the project involves a blend, send the blend rather than the individual ingredients.

Request a Configuration Review

Once the product, the fill range, the bag format, the machine family and the line connections are clear, the remaining questions are configuration questions. A review is most efficient when it works from your own samples and your own pack list, so that the feeding and filling side can be matched to the real product.

If you would like to take the seven steps further, send your pack details and samples through the contact page and we will come back with the machine families that fit the project and the points that still need to be confirmed.
