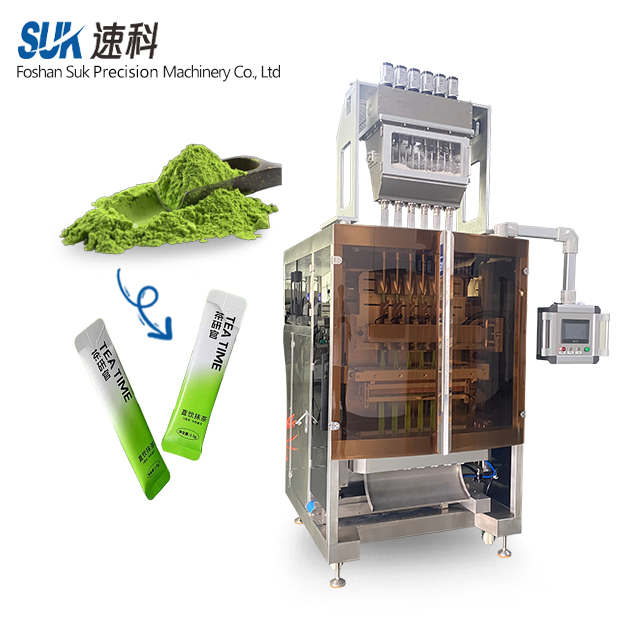

Multi-Lane Powder Packaging Machine

Description

SUK multi-lane powder packaging configurations are reviewed for food factories producing portion packs of coffee premix, seasoning or other powders. Multiple lanes can form and fill packs in parallel, but the lane count, powder dosing system and finished pack dimensions must be selected together. Stick describes a pack format; multi-lane describes the production configuration.

Features

Powder dosing: review flow, bulk density, dust and the required net weight and accuracy with an actual product sample.
Pack format: send the finished stick or sachet width, length, film structure and cutting requirements. Not every format is available on every configuration.
Output basis: specify accepted finished packs/minute for the whole machine, then confirm lane count and per-lane speed. Do not treat a per-lane figure as a verified total line output.
Downstream integration: define the number of packs per carton, arrangement, inspection and buffer needs before matching a cartoning unit.

Applications

Food factory applications to review include instant coffee premix, seasoning powders and other portioned dry ingredients. Different powders can require different screw, hopper and feeding arrangements. Confirm cleaning access and cross-product changeover requirements for your production process.

Choose the Powder Application Before the Lane Layout

Review 3-in-1 coffee premix, drink mix powder, vitamin powder blends, or single-serve nutrition powder according to the actual formulation and pack.

Provide bulk density, flow behaviour, target dose, finished dimensions and film. Lane count, accepted total output and cleaning arrangements should be selected together. For a specific catalog platform, compare the DLA-400F reference; its figures do not replace the separate SKD-420A reference below. Add packs per carton if you require counting and cartoning.

Technical Specifications

The SKD-420A table below is an existing website reference configuration, not the DLA-400F catalog record or a DLA550/900 liquid-machine specification. Film width, utilities, lane count and the proposed configuration need technical confirmation; the original air-consumption unit was unclear and is not repeated here. Reference maximums are not simultaneous performance guarantees.

Model	SKD-420A
Bag length	30-160mm(L)
Bag width	10-60mm(W)
Maximum film width	Confirm for selected configuration
packing speed	20-50bag/min/lane
gas consumption	0.2m³/min
Power supply	380V/220VAC 50HZ
Power	2.0KW
Device size	1100MM(L)990MM(W)2100MM(H)
Machine weight	560kg

Video

2g Powder Sachet Packaging Video

See a 2 g powder sachet workflow for protein powder, milk powder and coffee powder. The configuration should be reviewed against your powder behavior, target fill weight, sachet size, film specification and production requirements.

Discuss Your 2g Powder Sachet Project

Send your powder, target pack weight and sachet specification for a configuration review.

Explore powder packaging machines or contact SUK to discuss your production requirements.

Request a Food Packaging Configuration

Send your powder sample or product data, target grams per pack and accuracy, finished pack dimensions, film data and target total packs/minute. For boxing, add packs/carton, carton drawing, arrangement and target cartons/minute. Include destination country, power supply and available line space.

Review the multi-lane stick pack counting and cartoning line, compare DLA-400F powder reference data, or send your factory project to SUK.
