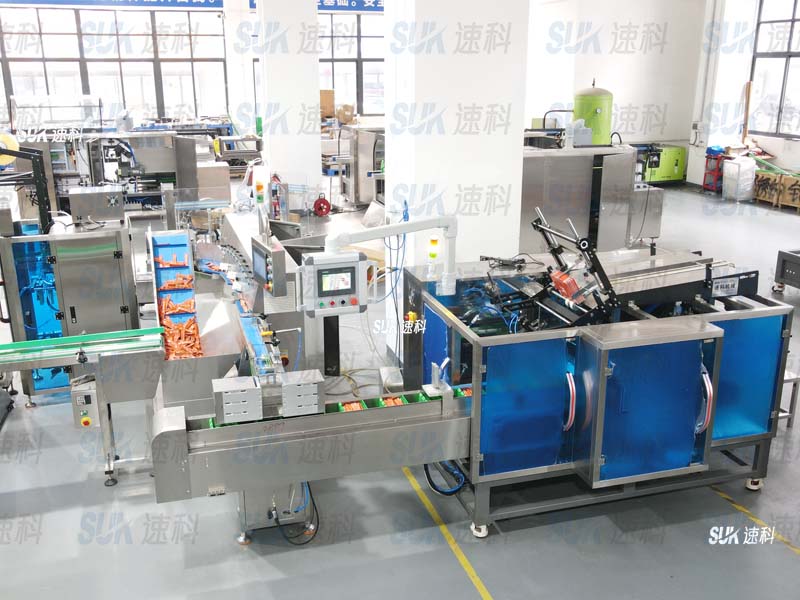

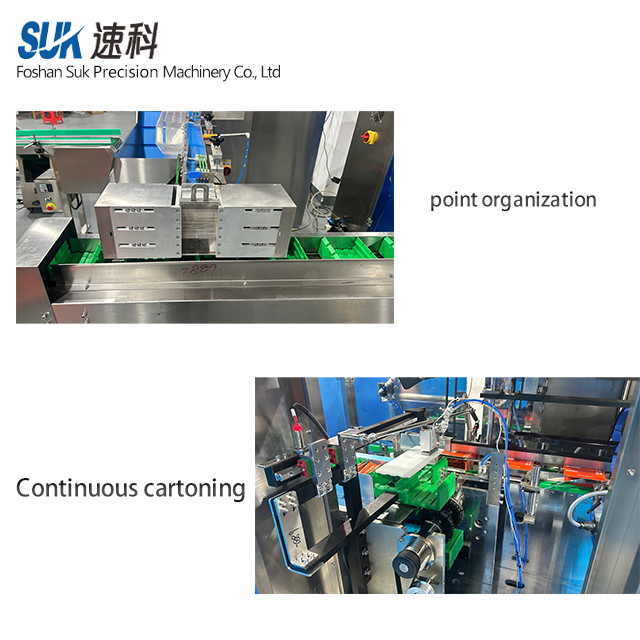

SUK counting and arranged-infeed equipment is evaluated for transferring filled sticks or sachets into defined groups before carton loading. Pack dimensions, thickness, stiffness, surface behaviour and the required carton count determine the handling arrangement. The quotation should define the feeding, counting, grouping, carton-loading and inspection scope, with acceptance checks using the actual filled packs and cartons.

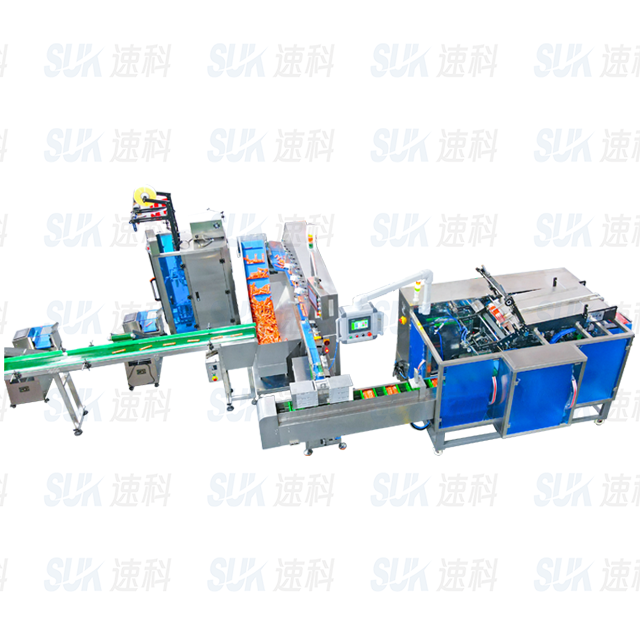

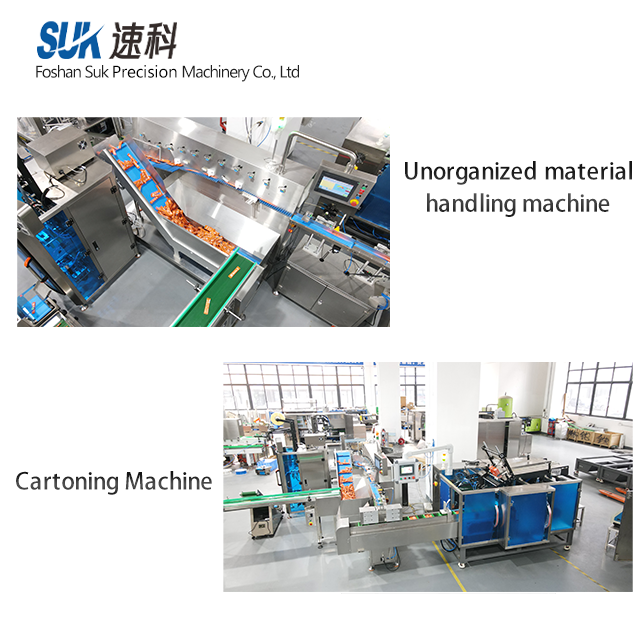

For a complete project, review the multi-lane packing, counting and cartoning line. A separate coffee powder line video illustrates a project-specific result, not a guarantee for every carton or this reference model. Send your filled pack and carton samples for interface review.
The SKZH-2620 table is an existing website configuration reference. It is not a promise of the same speed, carton capacity or installed layout for every pack. Confirm the current technical proposal and carton materials with actual samples.
| Model | SKZH-2620 |
| Packing speed | 20-60box/min |
| Carton size reference (confirm dimension order) | Max 260*180*80mm/ Min 90*30*20mm |
| Carton board specification | Confirm grade, basis weight (g/m²), thickness, stiffness and carton sample for the proposed setup |
| Power | 1.6 KW |
| Power supply specifications | 220V/380V 50HZ |
| Air sources | 0.5-0.8Mpa |
| Device size | (L)3825*(W)1592(H)1761mm |
| Machine weight | 1000kg |

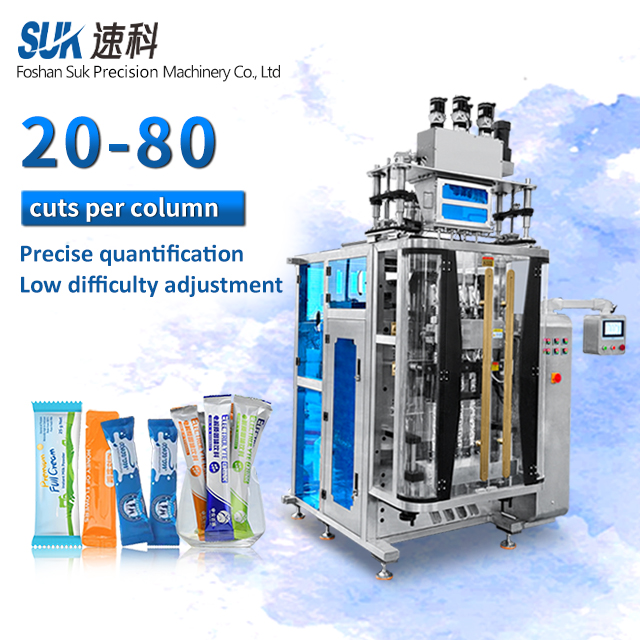

Planning a complete food packaging line? See our multi-lane stick pack counting and cartoning line to review the connection between primary packaging, pack grouping and carton loading. The finished-carton output must be matched to the incoming pack supply and the number of packs in each carton.
For a useful configuration review, send: your food product, filled-pack dimensions and sample, required packs per carton, carton dimensions, target cartons per minute and existing upstream equipment. Counting method, grouping arrangement, format changes and inspection requirements should be confirmed for the proposed configuration.
